Name: AWRA_DrainageDivision

Display Field: SrcFCName

Type: Feature Layer

Geometry Type: esriGeometryPolygon

Description: The Geofabric Surface Catchments product provides a hierarchy of nested catchments from drainage divisions at the top level all the way down to a separate catchment for every stream segment in the Geofabric Surface Network product. The top two levels of this hierarchy, Level 1 and Level 2, have been extracted as separate feature classes. Nationally the NCBLevel1DrainageDivision feature class consists of 12 topographically defined drainage divisions and represent the highest level of the catchment hierarchy. At the next level down, the NCBLevel2DrainageBasinGroup represent 191 catchment units approximating the Australian Water Resources Management Committee (AWRC) river basins as described by GA (1997).

Copyright Text: © Commonwealth of Australia (Geoscience Australia) 2026. This product is released under the Creative Commons Attribution 4.0 International Licence. http://creativecommons.org/licenses/by/4.0/legalcode

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 131.35250000000008
YMin: -33.247499999999945
XMax: 146.7550000000001
YMax: -18.812499999999943
Spatial Reference: 4283  (4283)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [0, 0, 0, 0]
Outline:
Style: esriSLSSolid
Color: [0, 132, 168, 255]
Width: 1

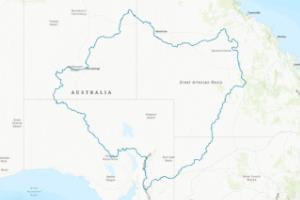

Label: Kati Thanda - Lake Eyre catchment boundary
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• objectid ( type: esriFieldTypeOID, alias: OBJECTID )
• shape ( type: esriFieldTypeGeometry, alias: Shape )
• hydroid ( type: esriFieldTypeInteger, alias: HydroID )
• divnumber ( type: esriFieldTypeString, alias: DivisionNumber, length: 50 )
• division ( type: esriFieldTypeString, alias: Division, length: 50 )
• srcfcname ( type: esriFieldTypeString, alias: SourceFeatureClassName, length: 25 )
• srcftype ( type: esriFieldTypeString, alias: SourceFeatureType, length: 32 )
• srctype ( type: esriFieldTypeInteger, alias: SourceType )
• sourceid ( type: esriFieldTypeInteger, alias: SourceID )
• featrel ( type: esriFieldTypeDate, alias: FeatureReliability, length: 8 )
• fsource ( type: esriFieldTypeString, alias: FeatureSource, length: 25 )
• attrrel ( type: esriFieldTypeDate, alias: AttributeReliability, length: 8 )
• attrsource ( type: esriFieldTypeString, alias: AttributeSource, length: 25 )
• planacc ( type: esriFieldTypeSmallInteger, alias: PlanimetricAccuracy )
• symbol ( type: esriFieldTypeSmallInteger, alias: Symbol )
• textnote ( type: esriFieldTypeString, alias: TextNote, length: 50 )
• albersarea ( type: esriFieldTypeDouble, alias: AlbersArea )
• st_perimeter(shape) ( type: esriFieldTypeDouble, alias: Shape_Length )
• st_area(shape) ( type: esriFieldTypeDouble, alias: Shape_Area )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
